ST_Buffer¶

Computes a geometry that represents all points whose distance from the input geometry is less than or equal to a specified distance.

Usage¶

geometry ST_Buffer(geom: geometry, distance: float64)
geometry ST_Buffer(geom: geometry, distance: float64, params: utf8)

Arguments¶

geom (geometry): Input geometry
distance (float64): Radius of the buffer
params (utf8): Space-separated key=value parameters. Supported parameters include quad_segs, endcap, join, mitre_limit, and side. These parameters are identical to the PostGIS buffer parameter strings.

Examples¶

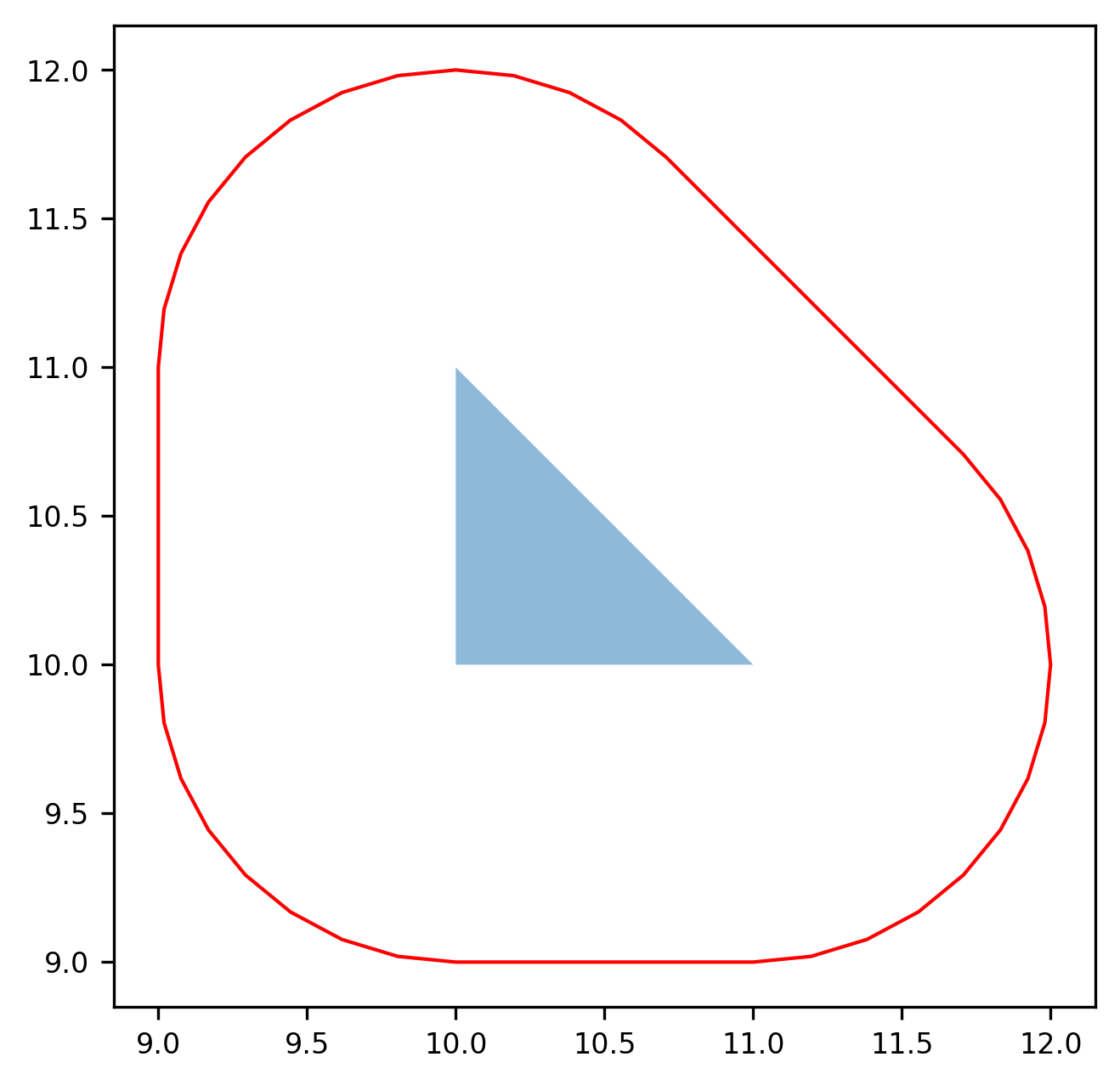

SELECT ST_Buffer(
  ST_GeomFromText('POLYGON ((10 10, 11 10, 10 11, 10 10))'),
  1.0
) AS geom;

┌──────────────────────────────────────────────────────────────────────────────┐
│                                     geom                                     │
│                                   geometry                                   │
╞══════════════════════════════════════════════════════════════════════════════╡
│ POLYGON((9 10,9 11,9.01921471959677 11.195090322016128,9.076120467488714 11… │
└──────────────────────────────────────────────────────────────────────────────┘

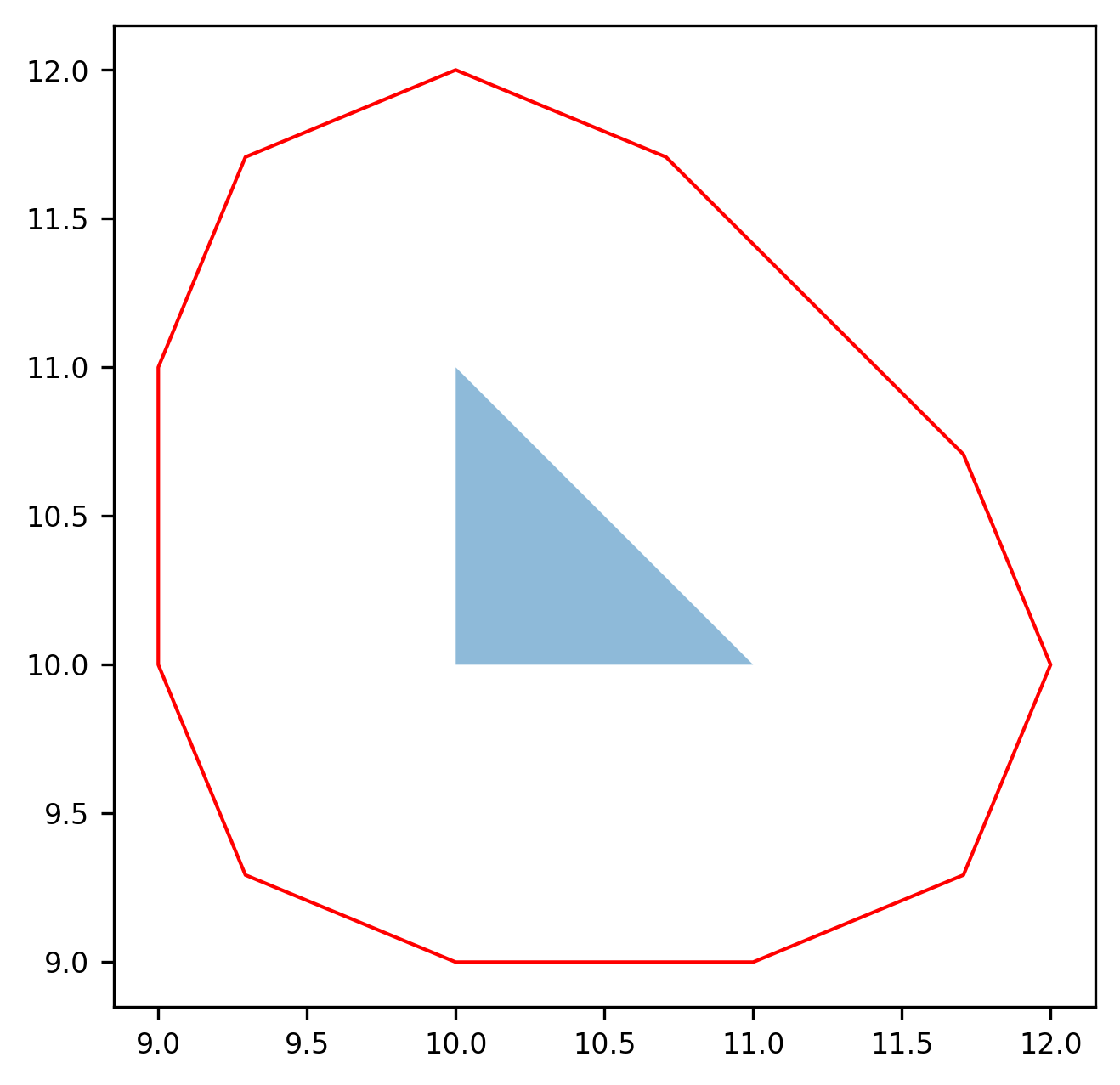

SELECT ST_Buffer(
  ST_GeomFromText('POLYGON ((10 10, 11 10, 10 11, 10 10))'),
  1.0,
  'quad_segs=2'
) AS geom;

┌──────────────────────────────────────────────────────────────────────────────┐
│                                     geom                                     │
│                                   geometry                                   │
╞══════════════════════════════════════════════════════════════════════════════╡
│ POLYGON((9 10,9 11,9.292893218813452 11.707106781186548,10 12,10.7071067811… │
└──────────────────────────────────────────────────────────────────────────────┘
